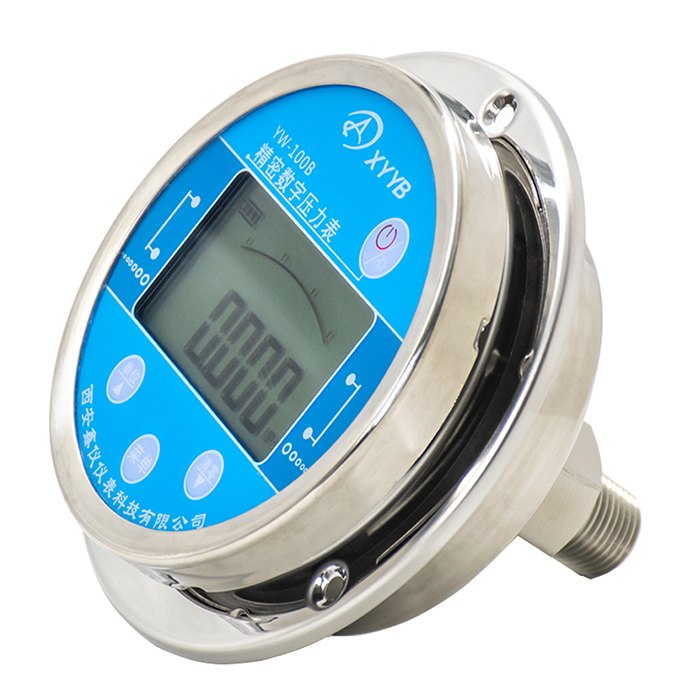

Hot Selling High-precision Pressure Gauge YW-100B Digital Pressure Gauge for Professional Testing

The YW-100B series precision digital pressure gauge is a high-precision intelligent pressure measuring instrument developed and produced by our company in accordance with the latest national standards. The YW-100B series digital pressure gauge mainly consists of a pressure sensor and a signal processing circuit. Adopting imported pressure sensors with superior performance, it has advantages such as high accuracy, corrosion resistance, impact resistance, vibration resistance, low temperature drift, and high stability; The signal processing circuit is composed of the latest ultra-low power processors, signal processing chips, and power management chips. Powered by high-capacity high-performance lithium batteries, no external power supply is required. The instrument has a delicate, compact, and beautiful appearance, and is easy to operate.

• Touch the key, and with the key tone, effectively improve the use of keys.
• 8000mAh lithium battery power supply (ER18505H),low power consumption design.
• Battery replaceable design, convenient for customers to replace the battery.
• Wide temperature compensation, suitable for all kinds of harsh environments.
• Peak record, unit conversion and other functions are complete, easy to use.
• Users can set the collection rate, automatic shutdown time, key lock time, backlight automatic shutdown time and other parameters according to their habits.
• 9 kinds of pressure unit conversion, and can be set to convert the unit, close the unit not commonly used.
• Added restore factory Settings function. In the process of operation, if the user misoperates, such as under pressure, mistakenly reset, enter the setting interface, etc. This function can be used to restore the pressure gauge to the data and Settings of factory calibration.
• Lock keys have been added to prevent touching other keys. In use, you can press the lock button, a lock pattern will appear on the display screen, lock other touch keys, and will not affect the press and use. After use, you can unlock and shut down.
• The explosion-proof certificate has been obtained, and the explosion-proof grade is EX Ia IICT4 Ga Accuracy level: 0.5%FS, 0.4%FS, 0.2%FS, 0.1%FS, 0.05%FS, 0.02%FS (within 60MPa) Pressure range: Gauge pressure: -100kPa ~ 0 ~600kPa ~ 260MPa Differential pressure: 0 ~ 100kPa ~ 3.5mpa Absolute pressure: 0 ~ 100kPa ~ 60MPa Operating Environment: Ambient temperature :(-20 ~ 50) ℃; Relative humidity: < 95%; Atmospheric pressure :(86 ~ 106) kPa; Storage temperature :(-30 ~ 80) ℃. Display: SFTN LCD, white backlight, 5 digit digital display. Power supply mode: 3.6V non-rechargeable lithium battery (ER18505H); It can be connected to external AC220V adapter for power supply; It can be connected between DC12V and DC36V. Installation method: Three types: radial installation, axial belt installation disc, split type installation; Other indicators: External dimension: 100mmx49mm, total length: 168mm Weight: 0.6 Kg Pressure interface: standard M20*1.5 external threaded connector (can be customized according to user needs); Additional features: Temperature measurement: resolution: 0.1℃; Pressure percentage indication: Use the progress bar to display the percentage of pressure measurement values; With (4-20)MA output; RS485 can be used for communication; It can be equipped with single or double circuit contacts. It can store 50,000 pieces of data with data storage, which can beexported with U disk or computer software. It only takes 7 minutes to export the data;
