Yokogawa EJX910A High Performance Multivariable Transmitter Smart Pressure Transmitter

Name: Yokogawa EJX910A High Performance Multivariable Transmitter Smart Pressure Transmitter
Brand: Yokogawa
Price: 1 USD

Buy cheap Yokogawa EJX910A High Performance Multivariable Transmitter Smart Pressure Transmitter product

Brand Name : Yokogawa

Model Number : EJX910A

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pca/Month

Delivery Time : 5-8 work days

Packaging Details : carton

Storage Temperature : -40 to 85 degrees Celsius

Media : Air and neutral gases

Trademark : HengTong

Thread : 50.5mm clamp

Operate Temperature : -20~150℃

Mounting Method : DIN rail or wall mount

Model No : BP93420D-I

Signal Output : 4–20 mA with HART communication

Process Temperatu : -40-100℃

Usage : Industrial Usage

Process Connection : 1/4" NPT

Hs Code : 9026201090

Interface Size : 1/2 NPT internal thread

Contact Now

Yokogawa EJX910A High Performance Multivariable Transmitter Smart Pressure Transmitter

The EJX910A high-performance multivariable transmitter adopts a monocrystalline silicon resonant sensor, which can output measurements of differential pressure, static pressure, process temperature, and calculate mass flow rate. Supports multiple protocols such as HART, FOUNDATION fieldbus, and RS485 Modbus.

Core Functionality

1. Multi parameter measurement

Differential pressure accuracy ± 0.04%, static pressure accuracy ± 0.1%, external temperature accuracy ± 0.5 ℃ (± 0.9 ℉)Support mass flow calculation with
an accuracy of ± 1.0% (when the range ratio is above 10:1), suitable for flow meters such as orifice plates, nozzles, and Venturi tubes

2. Communication Protocol

Compatible with protocols such as HART 5/7, FOUNDATION fieldbus, RS485 Modbus, etc;
HART 7 supports long tag numbers (32 characters) and enhanced burst mode;

3.Security certification

Passed TUV SIL 2/3 certification to meet industrial safety requirements;

Differential pressure accuracy	±0.04%‌
Static pressure accuracy	±0.1%‌
Process temperature	-40~120℃
Compensation function	Support density compensation and fully compensated quality flow
Output signal	4~20mA DC
Power supply	24V DC
Supported Protocols	HART 5/7, FOUNDATION fieldbus
TUV SIL certification	Meets SIL 2/3 safety level

Product Tags:

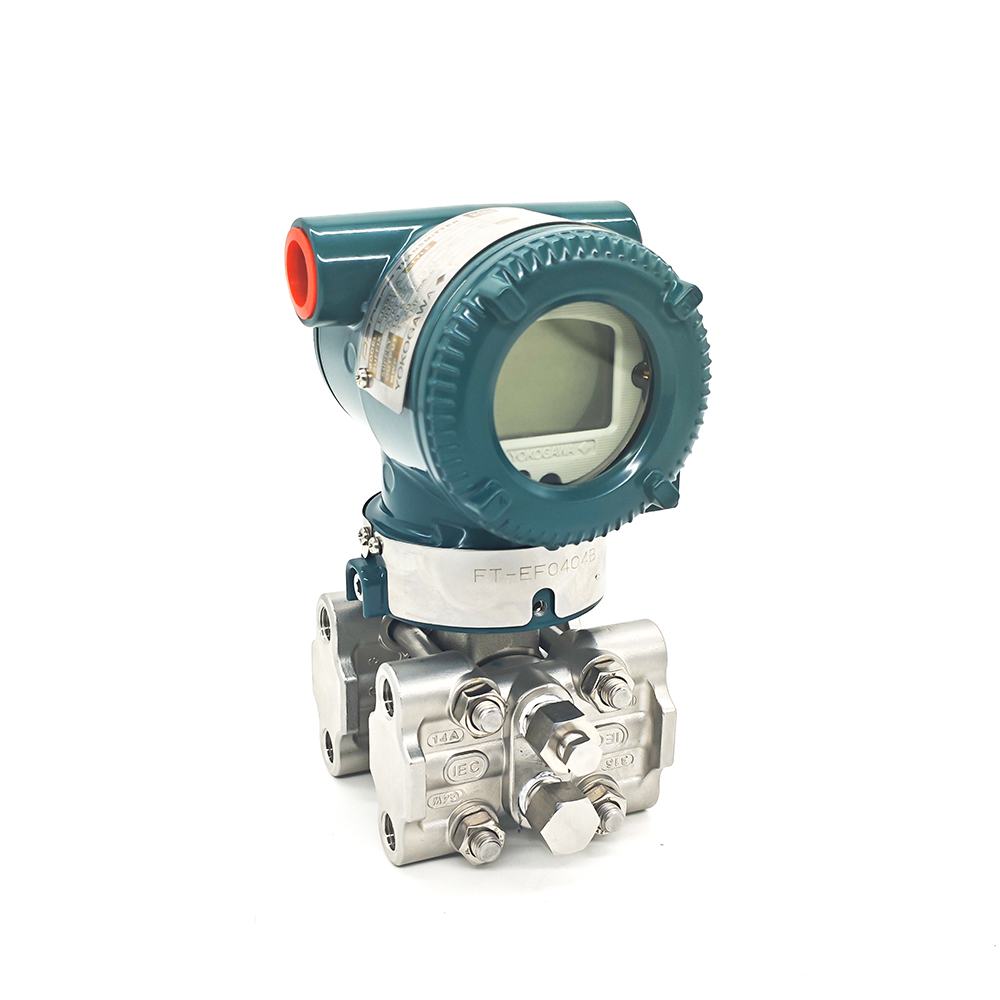

Yokogawa EJX910A High Performance Multivariable Transmitter Smart Pressure Transmitter Images
